| Features |

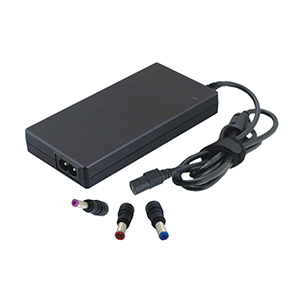

| Desktop Type, Long-extension detachable AC Power cord |
| AC 100-240V Input worldwide, |
| Energy-saving and latest-technology chipset and components applied |
| High transformation efficiency, good insulating properties, thermal effects, long life |
| Automatic output voltage selection and smart connector |
| Compact-size & light-weight design |
| Several Updated exchangeable DC connectors / tips for maximum compatibility of laptop models. |
| With active PFC |
| Green Mode |
| Meeting DoE Level VI, ErP Stage 2, CoC Tier2 |
| No Load Power Consumption Less Than 0.21W |
| Average Efficiency > 90% |
| Input |
| Voltage | 100-240 VAC worldwide, |
| Line Frequency | 50-60Hz |
| Current | 1.0A Max. |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320/C8 ; (Class II ) , 18mm Thin Housing |
| AC Cord | detachable 1.2-2Meter UL certified AC Power cord w/2PIN plug |
| Output |
| Power | Continuously Up to 90Watts |
| Ratings | 19.5V 4.62A |
| Load Regulation | ± 5%; |
| Ripple | 2% Vp-p Max. for Output Voltage @ Full Load |
| Transient Response | 0.5ms for 50% Load Change Typical |
| Holdup Time | 10mS @ Full Load |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current |
| Protection |
| DC Cord | 18AWG, No Ferrite Core |
| DC connector | 7-13 exchangable tips (optional) |
| Safety Approvals |
| CE / EN / EC / UL / 62368 |
| Electrical |
| Dielectric Withstand | 3,000 VAC Primary – Secondary |
| EMI Conduction & Radiation | Compliance to EN55032：2015+A1:2020 |
| Harmonic Current | Compliance to EN61000-3-2：2019 |
| EMS Immunity | Compliance to EN55035:2017+A11:2020 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental |
| Operaturing Temperature | 0 to +40°C |
| Storage Temperature | -20 to +80°C |
| Relative Humidity | Operating: 20 to 80% RH |
| Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical |
| Case Dimension | L 146 x W 70 x H 18 (mm) |
| Weight | 280g (Ref.) |
